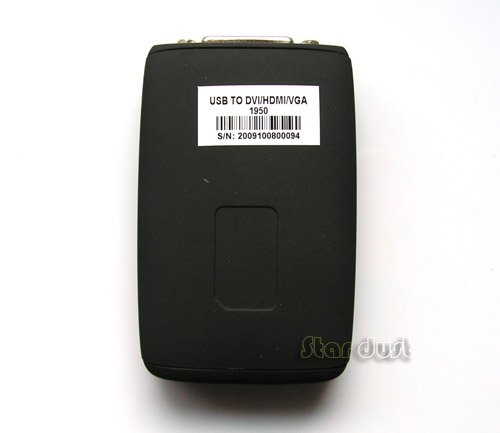

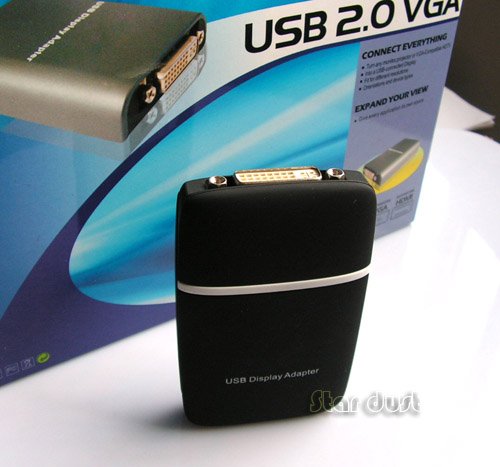

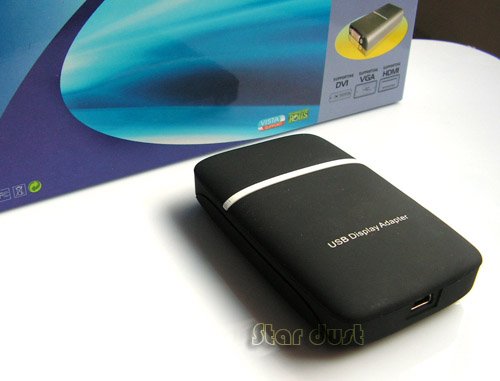

USB 2.0 DVI VGA HDMI UGA Multi-Display Adapter

Place of Origin: Guangdong China (Mainland) Output Interface Type: VGA,DVI,HDMI Products Status: Stock Brand Name: displaylink Interface Type: USB Video Memory Type: DDR2 Video Memory Capacity: 128MB Model Number: dl195 Chipset Manufacturer: displaylink Support resolution Max: 2048x1152
Unit Type: set Package Weight: 0.5kg Package Size: 20cm x 18cm x 5cm

Features

• Add-on monitor, LCD or projector through a single USB 2.0 port
• Supports up to 2 USB display adapters to work simultaneously
• Plug & Play
• Hot-plug; add or remove monitor without system reboot
• Windows Vista compatible

Resumes from hibernation and suspend modes

System Requirements

The minimum requirements for the PC are:

• With CPU at 1.2GHz or higher processor clock. Intel Pentium/Celeron family, or AMD K6/Athlon/Duron family, or compatible processor
• 256 MB of RAM
• At least one USB2.0 port
• 30Mb of available disk space
• Windows 7 (32bit), Windows 7 (64bit), Windows Vista (32bit), Windows Vista (64bit), Windows XP (32bit), Windows 2000
  Apple OS X - Tiger 10.4.11, Leopard 10.5.7
• (Mac Platforms)Intel-based Apple computers including Mac Mini (Intel), iMac (Intel), MacBook, MacBook Pro, MacBook Air, and Mac Pro.
• Support VGA (800 x 600) or higher resolution monitor

To display DVD on the adapter-attached monitor, in addition to the requirements above, the following requirements should also be met: With dual core CPU at 2.0 GHz processor clock. The adapter screen resolution be set to 800x600 with 16bit color

Specifications

Host Interface	USB 2.0
Video Interface	DVI-I
Connectors	Video output:DVI-I 24pin + 5pin Female Connector Host upstream link:USB Mini-B Type Female Connector
Connectivity	Up to 2 adapters on a computer
RAM	8M x 16 DDR Synchronous DRAM (SDRAM)
Power Mode	Bus-powered
Operation System Support	Windows 7 (32bit), Windows 7 (64bit), Windows Vista (32bit), Windows Vista (64bit), Windows XP (32bit), Windows 2000 Apple OS X - Tiger 10.4.11, Leopard 10.5.7
Supported Modes	Extended Desktop (Default), Mirrored Desktop, Primary Display
Supported Resolutions	640x480, 800x600, 1024x768, 1280x960, 1280x1024, 1400x1050, 1680x 1050, 1600x1200, 1920x1080, 2048*1152(Max)
Housing	Plastic
USB Cable	Separated from the body Type: USB A -Type Male to 5pin Mini USB B-Type Male Color: Black Length: 1M
Operating temperature	10-40°C
Storage temperature	-10~80°C
Relative Humidity	< 85% non-condensing
EMC	FCC Part 15 Class B, IC ICES-003 CE (EN55022, EN61000, EN55024)
RoHS	RoHS compliant

Package Contents

• USB Display Adapter x1
• DVI-A male to VGA female Adapter x1
• DVI-A male to HDMI female Adapter X1

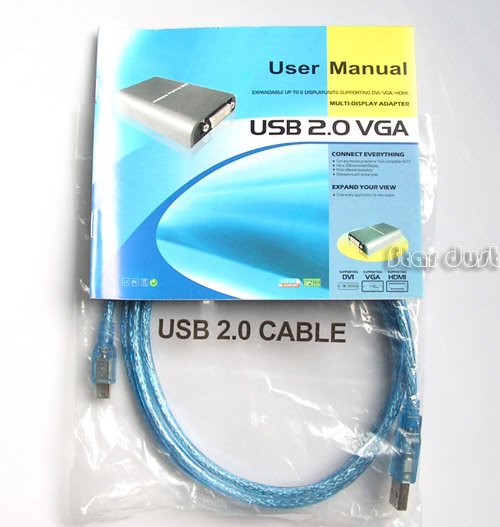

• USB Cable x1
• Driver CD x1
• Quick Installation Guide x1
