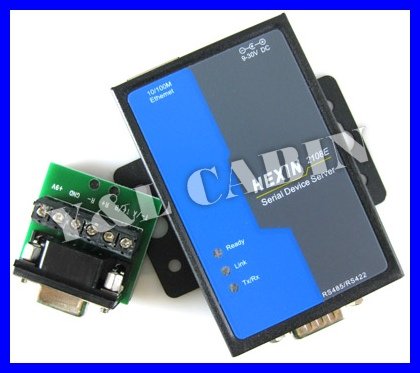

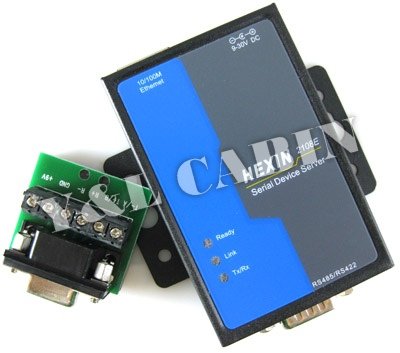

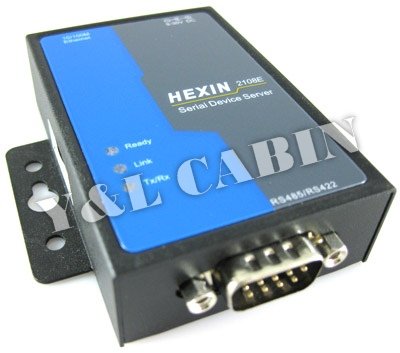

Ethernet Serial Device Server Adapter Converter

Place of Origin: Guangdong China (Mainland) Model Number: RS422/485 TO TCP/IP Type: Serail Converter Serial Interface: RS422/RS485
Unit Type: piece Package Weight: 0.6kg Package Size: 23cm x 17cm x 8cm

RS-422/RS-485 to TCP/IP Ethernet Serial Device Server

 Build high performance & secure network!

• Connect RS-422/485 serial device to Ethernet for long-distance, fast & easy management.

• Easy setup and use. No need to know complicated TCP/IP protocol and change current program.

• Featured transparent data transmission media conversion for RS422/485 over LAN or WAN.

• Convert IP address to virtual COM port.

• Static or dynamic IP address supported.

• TCP server and client mode auto switching.

• Auto-detecting 10/100Mbps Ethernet.

• Half duplex mode for RS485 wiring, full duplex for RS422 wiring.

• Protocol: TCP/IP, UDP, ICMP, ARP.

• Baud rate: 300bps-115200bps.

• Interfaces: RJ45, DB9 Male RS422/485 and 9V-30V DC jack.

• LED indicators: Ready, Link and Tx/Rx.

• Internal 5V DC power and external AC-DC power adapter available.

• Case Weight: 139g.

• Case Dimensions:79x52x21mm.

• COM port management, configuration and test software included.

• Please note: The default power adapter is US spec. If you would like a UK or Europe spec power adapter, please let us know.

Package content:

1X RS-422/485to TCP/IP Serial Device Server.

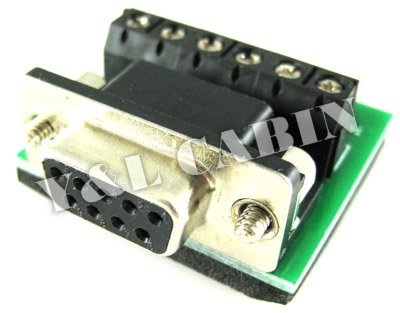

1X 6 Pin Terminal strip.

1X AC-DC Power Adapter. (Input 220v-250v and Output 9v 500mA)

1X 2M UTP 4Pairs 24AWG Patch Cable.

1X Software CD
