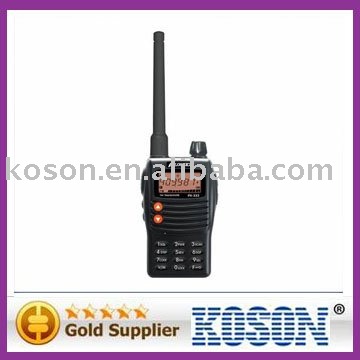

Mini UHF Walkie Talkie FM Transceivers Wireless Two-way Radio

Place of Origin: Hong Kong Dimensions: 84mm*48mm*25mm Storage Channel: 99 Frequency Range: 400~470(MHZ) Model Number: UHF Walkie Talkie Talk Range: 5 ~ 10 (km) Brand Name: walkie talkie Type: Handheld Encryption method:: CTCSS, CDCSS Operating Voltage:: 3.6V Battery standby time:: 43 hours (theoretical calc... Antenna Interface:: SMA-J During normal working hours:: 18 hours (theoretical calc...
Unit Type: piece Package Weight: 0.6kg Package Size: 20cm x 19cm x 15cm

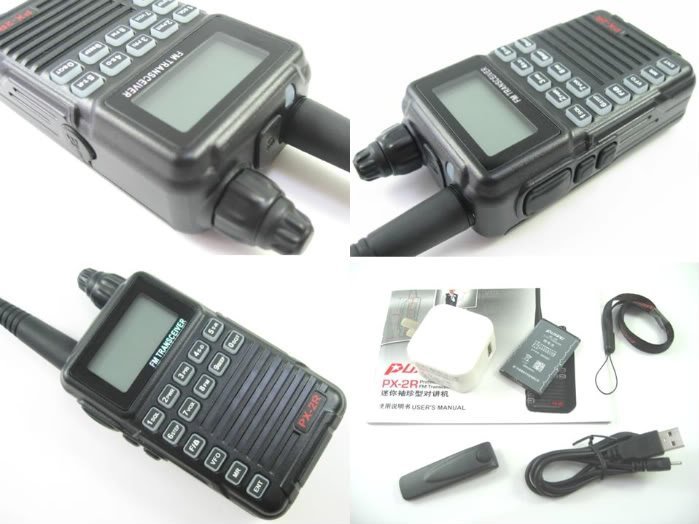

Mini UHF Walkie Talkie FM Transceivers Wireless Two-way Radio





Features:

• All channel scan and priority channel scan
• Scan types :Carrier, time and search
• Busy channel lock: carrier/QT/DQT
• VOX sensitivity:0-9 levels adjustable
• Transmitter power:High power and low power switchable
• Squelch opening threshold: Receive field intensity should accurate (use the sq level to show the intensity)
• Led backlight: On/off/automatic
• Beep set: Beep on/off
• Keypad lock function: Manual/auto optional
• Transmit limited: off-270 optional
• Offset set:0-xxmhz optional (confirm the max offset according to the band after adjusting)
• CTCSS and DCS setting
• Receive only
• Transmit only
• 50 CTCSS and 104 DCS
• +/-offset:+/-frequency optional
• Offset step optional:12.5k/25k
• Use Dot Segment to display on LCD
• Select the LED/emergency call by programming software
• Volume control knob to turn on/off the power
• PC programming and store channel
• Can use car charger
• DC 3.7V single li-ion battery compatible with mobile phone battery
• MINI compact size 84*48*25 cm
• Output power: UHF 400-470mhz 2w



Specifications:

Frequency Range	UHF 400-470MHz
Operating Voltage	3.6V
Operating Temperature	-30c~+60c
Battery	1100mAh(Li-ion)
Antenna Impedance	50 ohm
Dimension(without antenna&battery(L×W×H)	84*48*25(mm)
Weight(with antenna&battery)	200g
Transmitter
RF Power Output	UHF:2W/1W
FM Noise	55dB
Adjacent Channel Power	55dB/60dB
Receiver
Selectivity	60dB
Intermodulation	60dB
Spurious Response Rejection	40dB



Package contens:

• 1 x 400-470MHz UHF radio
• 1 x 3.6V 1100mah Battery Pack
• 1 x English instruction manual
• 1 x USB cable (as charger)
• 1 x belt clip hand strap and antenna
