Hdmi Switch Audio Converter DVD PS3 VGA Connection Display Projection HDV331

Blue: Electronics
Unit Type: piece Package Weight: 0.5kg Package Size: 18cm x 14cm x 12cm

HDMI switch audio converter DVD PS3 VGA connection display projection HDV331

Type: HDV331 (white box blue box decided to randomly send the batch)

HDMI-VGA
Design Concept:
     HDV331 is a high-definition video can be converted to VGA HDMI digital signal and analog signal converter audio signal AUDIO, VGA signals can be sent to the CRT / LED displays, and projectors,

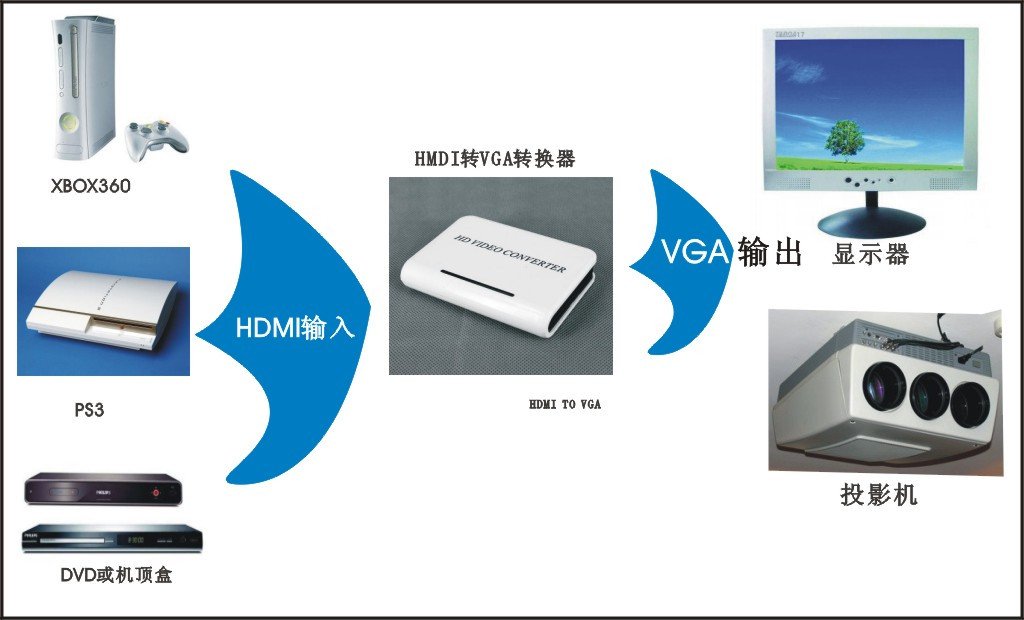

Input HDMI signal can SPIDERS computer PC, laptop, PS3, XBOX360, Blu-ray DVD, HD set-top boxes, the output of household connections are VGA to CRT / LED Display, HD TV TV VGA-IN, projector, VGA-IN, etc., can be easily HD TV HD TV with no friends to solve the worries temporary
      HDV331 digital conversion chip, only the HDMI signal into VGA signal, the signal does not reduce, enlarge and any other technical processing, and do not distinguish conditioning VGA, HDMI output up to 1080P/1.3, input and output exactly the same (point output )

Features:

   1 channel HDMI = 1 Way VGA 1 stereo
1: Video Input Interface - HDMI
HDMI input format: 480P, 720P, 1080I, 1080P
Corresponds to the standard VGA resolution: 640  480 60Hz, 1280  720  60Hz, 1920  1080  60Hz

2: Video output interface - VGA
VGA Output Resolution: With the change of the input signal HDMI
  640  480  60Hz, 800  600  60Hz, 1024  768  60Hz, 1280  720  60Hz, 1280  768  60Hz, 1280  800  60Hz, 1280  1024  60Hz, 1360  768  60Hz, 1600  1200  60Hz, 1920  1080  60Hz

3: Audio output interface - 3.5mm
HDMI Output format: up to 1080P/1.3

4: The signal indicator
Lights up blue product in working condition, automatic identification of the input signal format

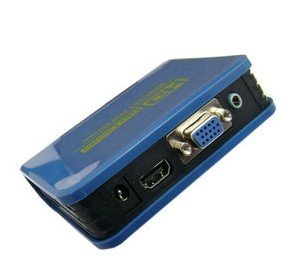

   Interface Description:

1.Power Input (DC5V) - DC 5V power input
2.HDMI INput   HDMI signal input
3.VGA Output      VGA signal output interface
4.AUIO Output    analog stereo audio output interface


Accessories Description:


HDMI-VGA host x1

5V/1A DC power supply x1

Manual x1
