USB 2.0 DVI HDMI UGA Multi-Display Adapter

Place of Origin: Guangdong China (Mainland) Output Interface Type: VGA,DVI,HDMI Products Status: Stock Brand Name: displaylink Interface Type: USB Video Memory Type: DDR2 Video Memory Capacity: 128MB Model Number: dl160 Chipset Manufacturer: displaylink Support resolution Max: 1600x1200
Unit Type: set Package Weight: 0.5kg Package Size: 20cm x 18cm x 5cm

Features

• Add-on monitor, LCD or projector through a single USB 2.0 port
• Supports up to 2 USB display adapters to work simultaneously
• Plug & Play
• Hot-plug; add or remove monitor without system reboot
• Windows Vista compatible

Resumes from hibernation and suspend modes

System Requirements

The minimum requirements for the PC are:

• With CPU at 1.2GHz or higher processor clock. Intel Pentium/Celeron family, or AMD K6/Athlon/Duron family, or compatible processor
• 256 MB of RAM
• At least one USB2.0 port
• 30Mb of available disk space
• Windows 7 (32bit), Windows 7 (64bit), Windows Vista (32bit), Windows Vista (64bit), Windows XP (32bit), Windows 2000
  Apple OS X - Tiger 10.4.11, Leopard 10.5.7
• (Mac Platforms)Intel-based Apple computers including Mac Mini (Intel), iMac (Intel), MacBook, MacBook Pro, MacBook Air, and Mac Pro.
• Support VGA (800 x 600) or higher resolution monitor

To display DVD on the adapter-attached monitor, in addition to the requirements above, the following requirements should also be met: With dual core CPU at 2.0 GHz processor clock. The adapter screen resolution be set to 800x600 with 16bit color

Specifications

Host Interface	USB 2.0
Video Interface	DVI-I
Connectors	Video output:DVI-I 24pin + 5pin Female Connector Host upstream link:USB Mini-B Type Female Connector
Connectivity	Up to 2 adapters on a computer
RAM	8M x 16 DDR Synchronous DRAM (SDRAM)
Power Mode	Bus-powered
Operation System Support	Windows 7 (32bit), Windows 7 (64bit), Windows Vista (32bit), Windows Vista (64bit), Windows XP (32bit), Windows 2000 Apple OS X - Tiger 10.4.11, Leopard 10.5.7
Supported Modes	Extended Desktop (Default), Mirrored Desktop, Primary Display
Supported Resolutions	640x480, 800x600, 1024x768, 1280x960, 1280x1024, 1400x1050, 1680x 1050, 1600x1200 (Max)
Housing	Plastic
USB Cable	Separated from the body Type: USB A -Type Male to 5pin Mini USB B-Type Male Color: Black Length: 1M
Operating temperature	10-40°C
Storage temperature	-10~80°C
Relative Humidity	< 85% non-condensing
EMC	FCC Part 15 Class B, IC ICES-003 CE (EN55022, EN61000, EN55024)
RoHS	RoHS compliant

Package Contents

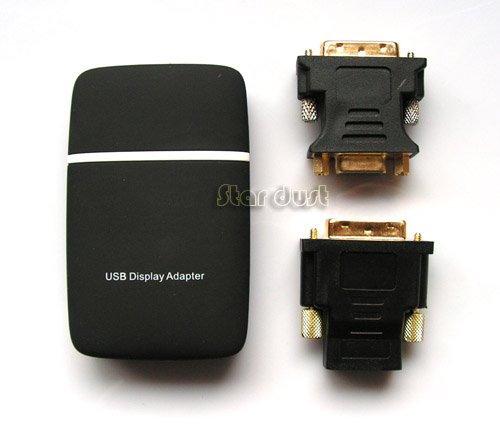

• USB Display Adapter x1

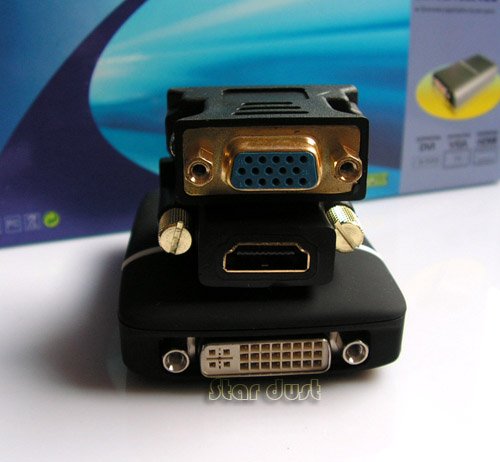

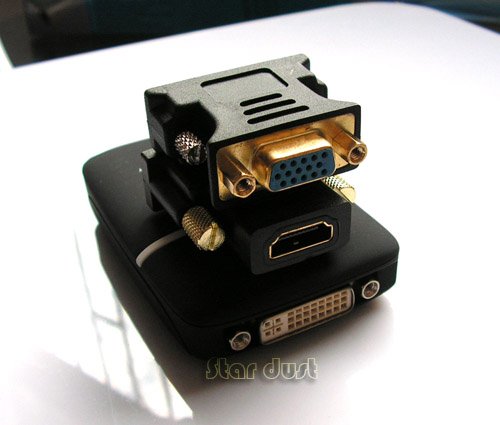

• DVI-A male to VGA female Adapter x1
• DVI-A male to HDMI female Adapter X1

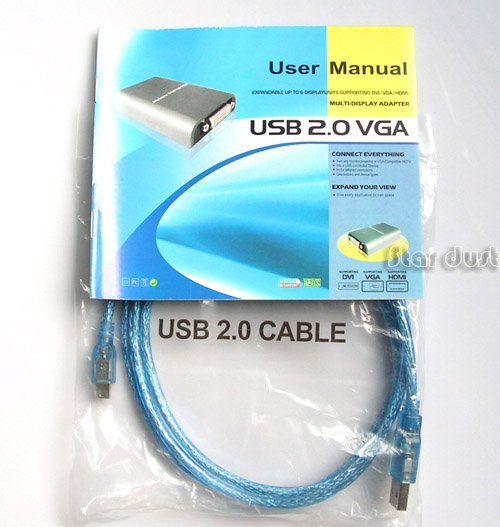

• USB Cable x1
• Driver CD x1
• Quick Installation Guide x1
