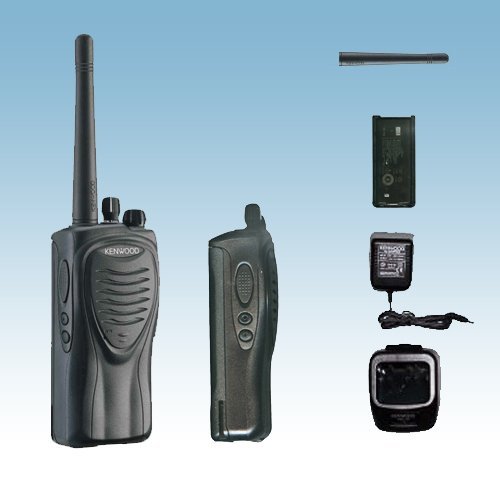

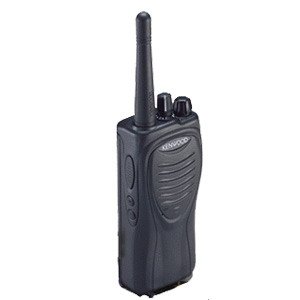

Place of Origin: Fujian China (Mainland) Talk Range: 5-20km Type: Handheld Storage Channel: 200 Dimensions: 54*139*37.5 mm Frequency Range: 136-174MHz Model Number: tk-3207/2207 Color: Black Housing: PC+ABS Battery: 1500mAh Weight: 390g
Unit Type: piece Package Weight: 0.9kg Package Size: 25cm x 8cm x 5cm


|
General standard
|
|
Frequency range
|
C: 136-174 MHz
-
|
C: 440-480, C2: 400-430 MHz
C5: 370-390 C6: 350-390 MHz
|
|
Single channel quantity
|
Max:16
|
|
Single channel interval
|
25 KHz / 12.5 KHz
|
|
Working voltage
|
7.5 V DC ± 20%
|
|
Working hours of battery (5-5-90 working circle, high power, power saving: close / on)
|

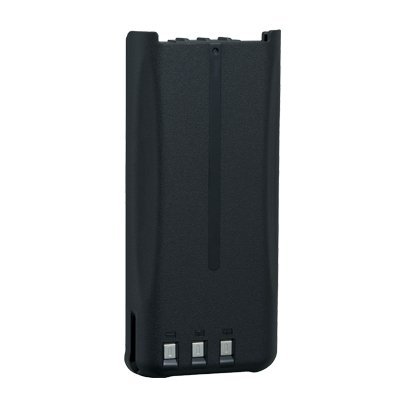

KNB-29N battery (1,500 mAh) about 14 hours
|
|
Working temperature *
|
-10 ~ +60
|
|
Frequency stability
|
±2.5 ppm (-30 ~ +60 )
|
|
Antenna impedance
|
50
|
|
Expanding frequency range of single channe
|
C: 38 MHz
|
C: 40, C2: 30 MHz
|
|
Figure (wide x high x deep)
Excluding outshoots
|
54 x 122 x 21.1 mm (net fuselage)
54 x 122 x 33 mm (with KNB -45L/29N)
|
|
Weight (net weight)
|
160 g (net machine)
360 g (with KNB-29N)
|
|
TK-2207
|
TK-3207
|
|
Receiving machine (checked according to the TIA/EIA-603 standard)
|
|
Sensitivity
(EIA 12 dB SINAD)wide/ narrow
|
0.25µV /0.28µV
|
|
Selective wide/ narrow
|
70 dB / 60 dB
|
|
Intermodulation wide/ narrow
|
65 dB / 60 dB
|
|
Fake single response
|
65dB
|
60dB
|
|
Audio frequency output (80 impedance)
|
500 mW with distortion less than 10 %
|
|
Transmitter (checked according to the TIA/EIA-603 standard)
|
|
Power output (high/low)
|
5 W/1 W
|
4W / 1W
|
|
Modulation limit
|
±5.0 KHz at 25 KHz
± 2.5 KHz at 12.5 KHz
|
|
Noise wave and normal wave
|
65dB
|
|
Modulation wide/ narrow
|
16K0F/11K0F3E
|
|
FM noise
|
45 dB / 40 dB
|
|
Modulating distortion
|
Less than 5%
|
