Super IAS Car Energy 200W 6.5 Inch 2 Way Component Speaker

Item Type: Speakers Place of Origin: Guangdong China (Mainland) Brand Name: ISC/OEM Model Name: FQ09459 Impedance: 4 Ohm Signal To Noise Ratio: 00 Frequency Range (Hz): 50Hz-23KHz Out Power: 200W Peak Power; 100W Continuous program power Material Type: Die-Cast Aluminum Basket Speakers Types: Speakers Sets Item Size: 6.5" 2 Way Voltage: 12V Audio Sensitivity: Efficiency 92dB/SPL Special Features: Component Speaker Car Make: universal Color Name: Black Item Weight: 3.0 kg condition: brandnew in box set: full set
Unit Type: piece Package Weight: 2.5kg Package Size: 35cm x 26cm x 18cm

Super IASCAR Energy 200W 6.5" 2 Way Component Speaker

Energy loudspeakers are the result of the SuperIASCAR's team of long experience and continuous research into Automobille acoustics, as well as the deep knowledge of installation procedures. Upgrade afactory system: their high efficiency improves OEM head unit performance, offering stunning dynamics and higher sound pressure level. Add a powerful amplifierl the high power handling of Energy loudspeakers ensure effortless reproduction in the most demanding situations. High sound pressure, excellent timbre and high power handling make Energy the ideal choice for every system.

EV 165 woofer ensures excellent acoustic quality, thanks to a powerful and symmetrical motor structure and to the pressed paper "V" cone. The DIN size basket and the compact size make it easy to install in almost every factory location.

EV 165 plus points: -

1. Low carbon content plates for maximum magnetic permeability and high heat dissipation.
2. Large motor assembly provides excellent voice coil control
3. Pure copper voice coil wound on til former, for very good thermal and mechanical capactiy
4. Water-repellent treated paper cone
5. "V" cone for the best off axis response, clear mid-high frequency detail and powerful bass
6. Rubber magnet cover provides damping to the basket and motor structure and protects from abrasions and damages
7. DIN size basket coat4ed with scratch-proof, corrosive-resistant material
8. High density rubber surround, glued with heat-resistant adhesive
9. Epooxy glue for basket and motor system provides perfect coupliing
10. Curve memory Nomexs spider for consistent, reliable performance
11. Tin-plated, high current terminals
12. Silver-plated lead wires for maximum reliability and conductivity

ET 20 tweeter was designed to ensure state of the art performance in the smallest space: the provided mounting hardware allows easy installation in the most challenging locations.

ET 20 plus points: -

1. Tetolon dome: extremely light and well damped for a smooth and extended high frequency response
2. 20mm, ultra light ferrofluid cooled mobile voice coil
3. High energy REN neodymium magnet
4. Low carbon content plates for maximum magnetic permeability and high heat dissipation
5. Damping material; Controlling acoustic resources insuring clear, brilliant high frequency tones
6. High frequencies diffraction lens, optimizing off axis high frequency response

CX200 Energy system crossovers feature an aggresive, comestically appealing housing which protects the efficient, refined network. Easy installation, reference acoustical performance in the mobile environment and the utmost reliabilitiy. The SuperIASCAR philosophy.

Specifications:

• 200W 2 Way System 165mm (6 1/2")
• Grille Included
• ET 20 Neodymium REN Tweeter
• IA-165 woofer DIN
• CX200 dedicated crossover
• Impedance 4 Ohm
• Crossover Hi-Pass 3.5KHz/12dB Oct.
• Crossover Lo-Pass 3.5KHz/6dB Oct.
• Efficiency 92dB/SPL
• Frequency Range: 50Hz-23KHz
• Power Handling: 200W Peak Power; 100W Continuous program power
• Woofer Mounting Depth: 60mm
• Tweeter Mounting Depth: 13.4mm
• Weight: 0.920KG per woofer

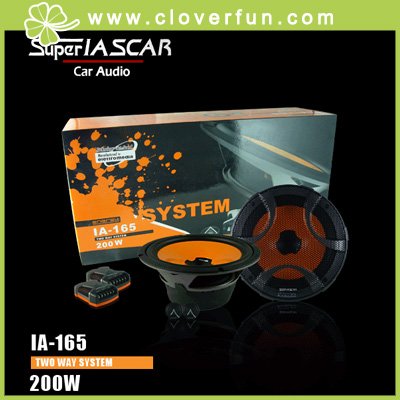

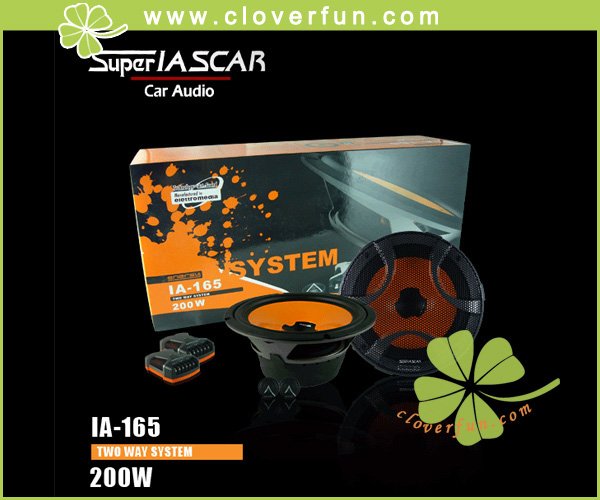

Package Content:

• 2x EV-165 6.5" Woofer
• 2x Grilles included
• 2x ET20 Tweeter
• 2x Tweeter Mounts
• 2x CX200 Crossover
