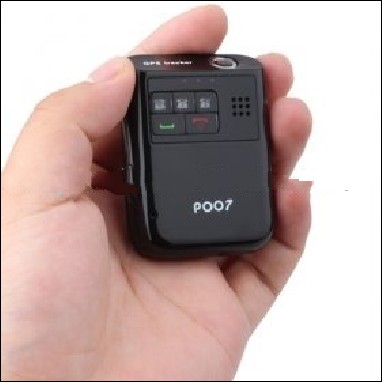

Portable Mini 20 Channel All-in-view GPS Tracker

Place of Origin: Guangdong China (Mainland) Model Number: EGT30X Type: Gps Tracker  Use: Hand Held Screen Size: no Function: gps tracking device Color: black,white Logo: can be oem Warranty: 12 months
Unit Type: piece Package Weight: 0.6kg Package Size: 30cm x 20cm x 15cm

GPS Tracker

HOT SPOTS:

1.Provides peace of mind by showing you with your mobile phone or PC
  the location of your targets via SMS or GPRS.
2.Tracking via SMS or GPRS(TCP/UDP).
3.Current Location report.
4.Tracking by time interval.
5.Two-way converstion.
6.Voice MT.
7.SOS Alert.
8.Geo-fencing control.
9.Low battery alert.
10.Speeding alert.
11.Motion sensor inbuilt for power saving.
12.Tree buttons for making phone call or sending message.
13.Remobable and rechargerable internal battery.
14.Built-in speaker and microphone.

Specification:

1.Charing voltage: DC 4.2-5.5V/400mA(mini USB port).
2.Internal Battery:Rechargeable and removable 950 mAh battery(3.7V).
3.Dimension:53.6mm*43mm*16mm
4.Weight:88.1G.
5.Operation temperature:-20` to 55`c
6.Humidity:5% to 95% Non-condensing
7.GSM moduld:GSM 900/1800/1900MHZ or GSM850/900/1800/1900MHZ.
8.GPS Sensitivity: -158db.
9.GPS Frequency: L1,1575.42MHZ
10.C/A Code: 1.023 MHZ chip rate.
11.Channels:20 channel all-in-view tracking.
12.Position Accuracy:10 mters,2DRMS
13.Velocity Accuracy:0.1 m/s.
14.Time Accuracy: 1us synchronized to GPS time.
15.Default datum:WGS-84
16.Reacquistion:0.1 sec.,average
17.Hot start:1sec.,average.
18.Warm start: 38sec., average
19.Cold start: 42sec.,average
20.Altitude Limit:18000 meters(60000 feet) max.
21.Velocity Limit: Less than 4G.
22.Jerk Limit:20 m/sec.
23.Work time: 60 hours in sleep mode nd 10 hours in normal mode.
24.LED: 3 LEDs showing power,GPS,GSM status and other operation status.
25.Button: 3 buttons(SOS/B/C) for making phone calls or sending SMS.

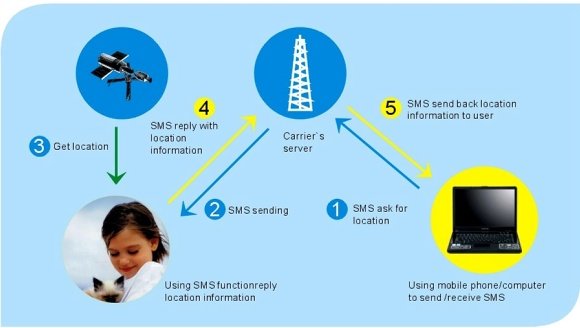

Easily Operating device

(Step 1)  Turn on ET80/P007+ after inserting the SIM card

(Step 2)  Dialing the phone number of ET80/P007+ by your mobile phone or send a sms to it.

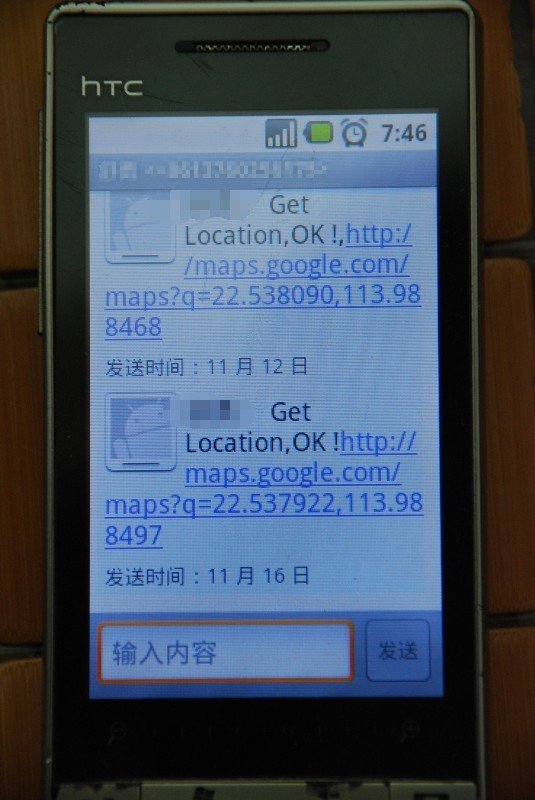

(Step 3)  Your mobile phone will recieved the position SMS

(Step 4)  Display the location on map.


Note: For the operation of other functions , please have a look at the user guide

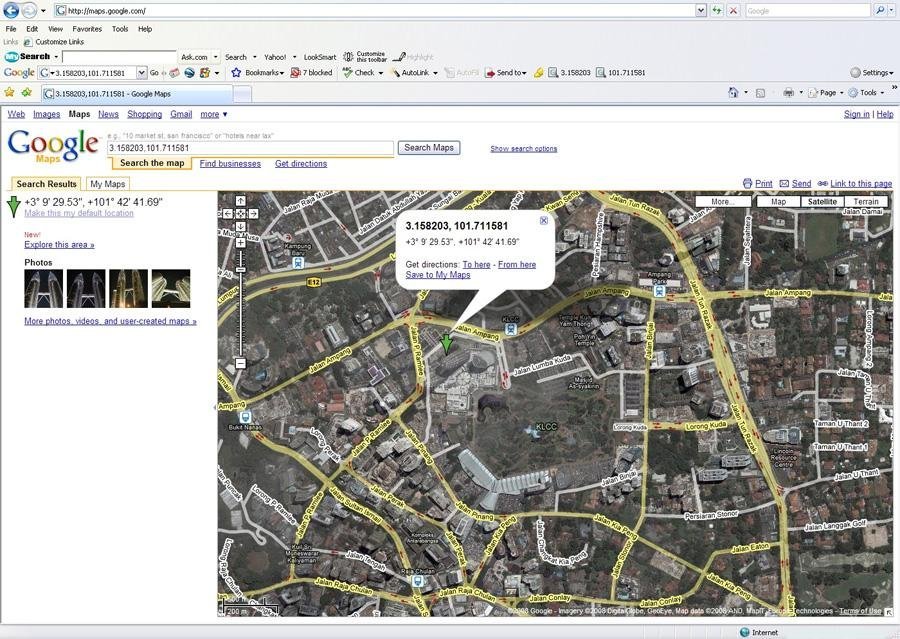

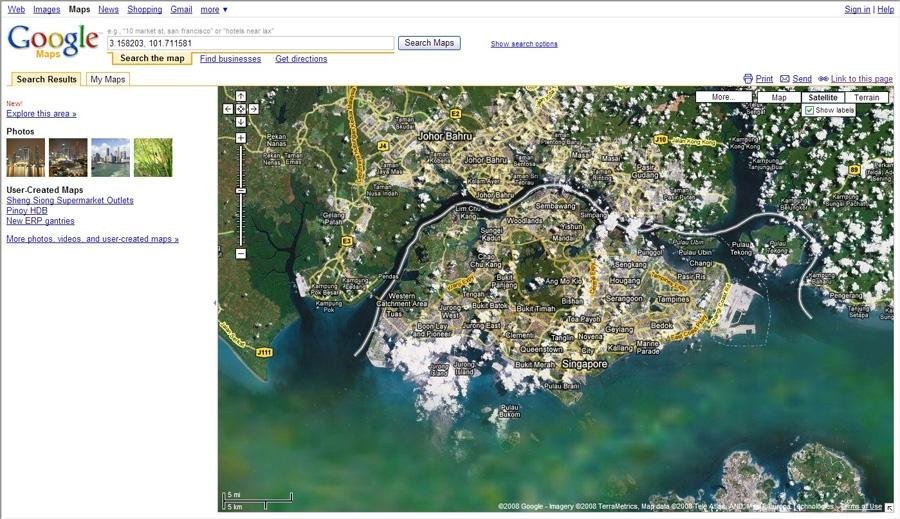

Displaying  location on PC with Google map or Google earth

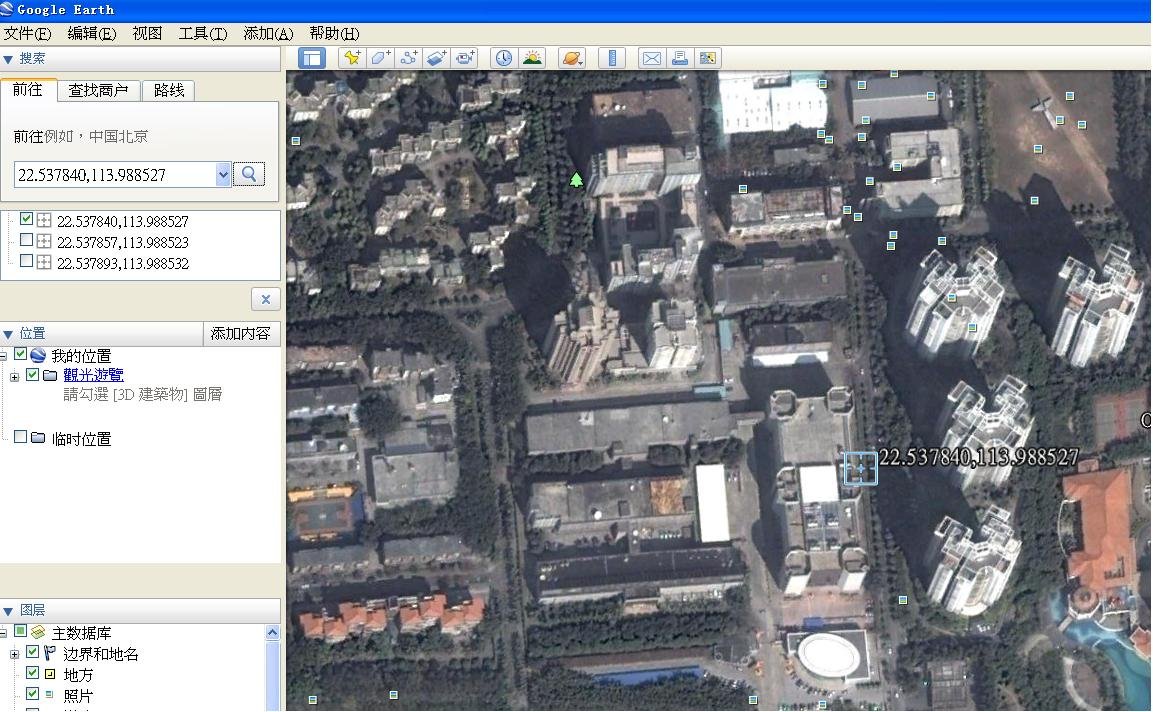

Start the Google Earth software.(For more information about Google Earth software, please refer to  ) As following picture shows:

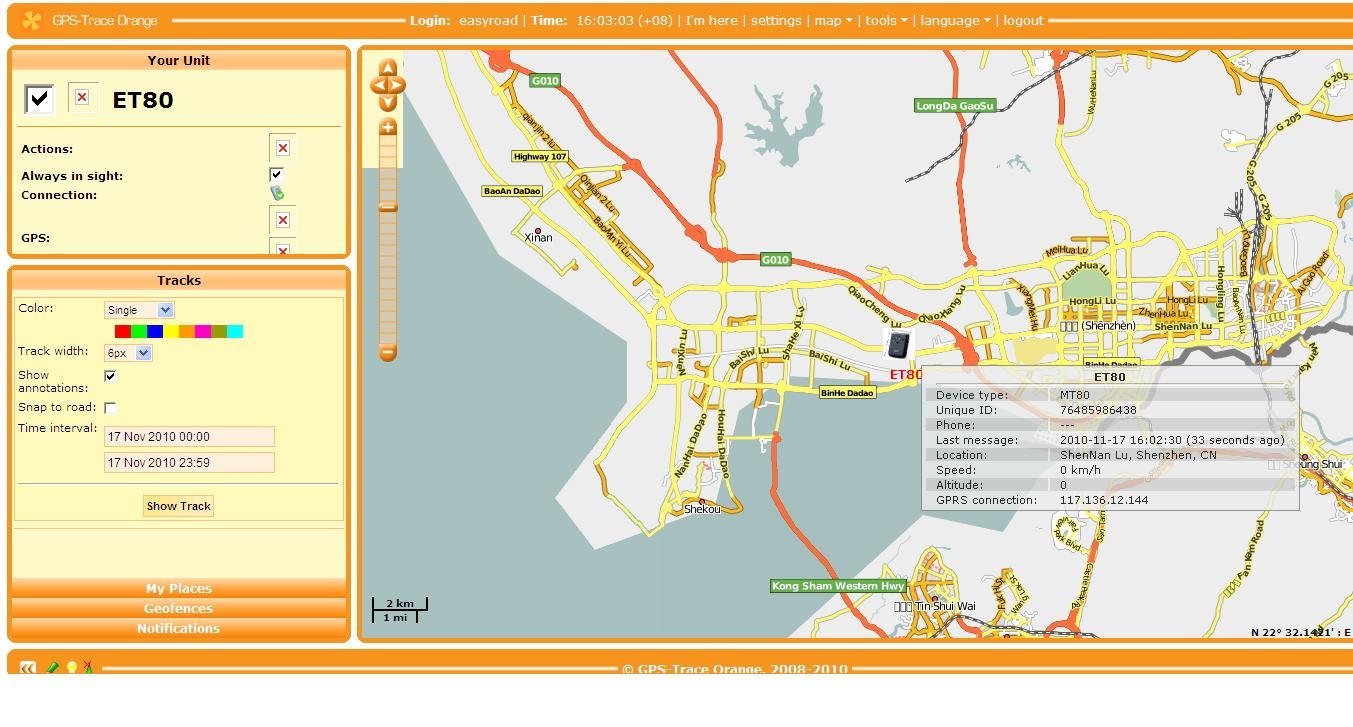

Displaying  location on PC with the third GPRS Server

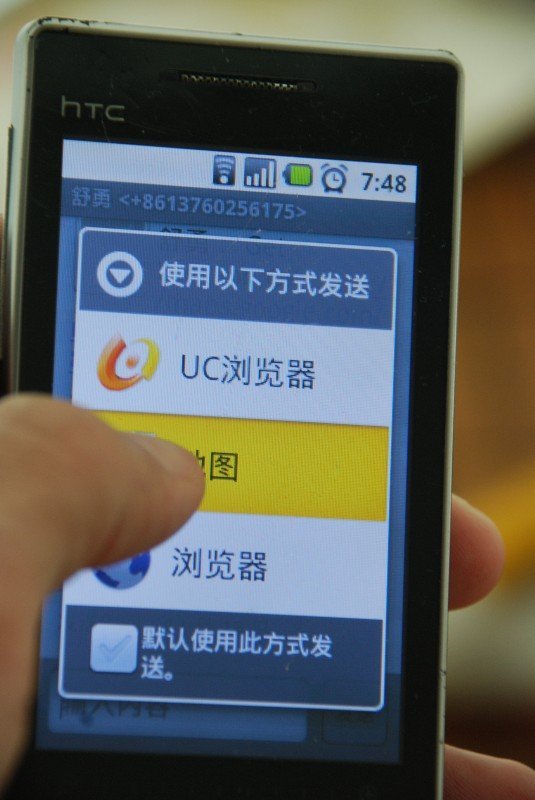

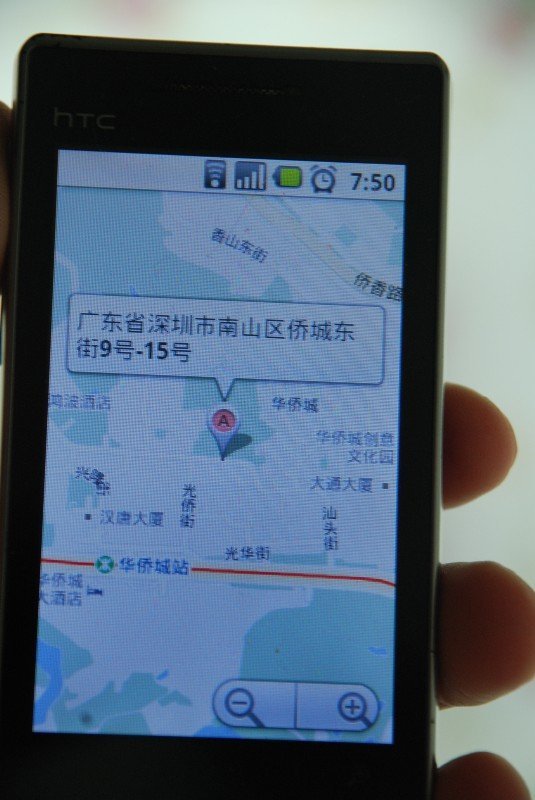

Displaying  location on your Smart phone/PDA phone with Google map
