Description:
Place of Origin: China (Mainland) Products Status: Stock Brand Name: musiland Type: Internal Interface Type: PCI Channels: 2 Model Number: MOLI Function: PCI Sound card
Unit Type: piece Package Weight: 0.5kg Package Size: 15cm x 12cm x 10cm

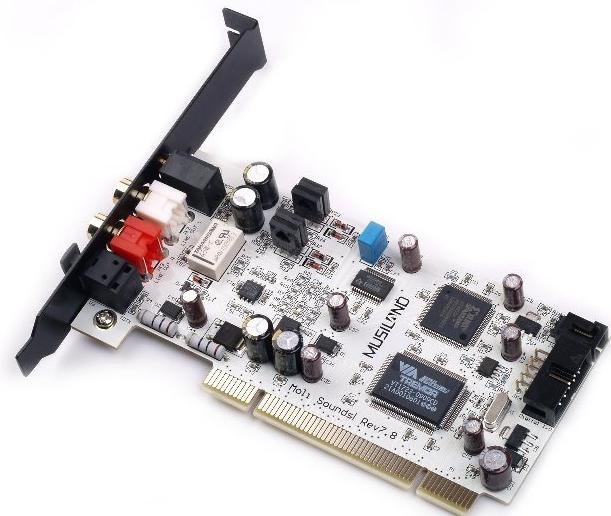

Musiland Moli sound card product is the customized product of PCI interface sound card for music lover used as high-quality music appreciator. Professional soundeffect chip of VIA Envy2 Series and FPGA chip of XILINX are adopted in the function of interface control and data processing and coordinated with high-performance D/A conversion chip of Ti company and high-performance operational amplifier. The product enjoys the feature of high-quality sound effect fidelity and high-speed audio processing.
1. Practically functional interface
Moli sound card is equipped with high-quality line output of RCA stereo and output interface of 3.5mm stereophone, using control panel for the switching of line and earphone out, which is convenient for user connecting with speaker system and earphone at the same time.
Suitable for being connected with earphone or earplug of low and middle impedance, earphone out of Moli sound card is driven by the special earphone play circuit with powerful driving force.
Moli sound card outputs purely stereo PCM encoded signal, Dolby Digital(AC-3)of multi-channel format and DTS digital signal by digital output interface of optical fibre. User can enjoy better music appreciating effect by connecting sound card with advanced external audio decoder, enjoy surround soundeffect as you-are-there in the movies by connecting sound card with AV system which has the function of decoding and transcord digital music by connecting MD equipment.
2Pin S/PDIF interface of Moli audio sound can be connected to S/PDIF inputting display card of HD to reach synchronously HDMI output of HD. It has the unique 10Pin digital expansion interface, connected to digital subcard (optional accessory) of Musiland to reach the function of optical fibre output and coaxial output.
2. High-quality audio property
Supporting soundeffect processing of 24Bit/192KHz format which is the highest-level format, Moli sound card has adopted D/A conversion chip of SNR and dynamic range of 113dB, so as to provide an effect of analog output with Hi-Fi timbre.
Precisely linearizing and voltage-stabilizing circuit, providing stable and less interfering power, makes analog circuit work at its best.
Musiland's special BALA served with high-performance operational amplifier and capacitor provides the most melodious soundeffect.
Without SRC process and Mixer of system, cooperation of FPGA chip of XILINX and professional audio control chip of Envy24 of VIA has guaranteed fidelity of audio freqency’s playback by the greatest extent.
FPGA is used to provide precise clock and set up hugely asynchronous buffer which makes an accurate timing of audio frequency for an unprecedented precision of quality of audio frequency’s signal and the minimum UIPP.
Accurate S/PDIF emitter, integrated internally in FPGA, outputs S/PDIF signal and popular digital signals, such as PCM, Dolby Digital, DTS, etc.. S/PDIF emitter is drived by precision interval clock, so it outputs a very low signal jitter, which reaches the required precision on equipment testing by audio lab.
Moli sound card also supports ASIO and provides characteristic of ultra-low audio delay.
3. Flexible Software Support
Perfect support of ASIO and WDM and mainstream operating systems, such as Windows XP, Windows VISTA, Windows7, can be offered by installment of drivers specially owned by Musiland.
Besides, due to constant optimization and regeneration of Musiland's drivers at later period, Moli sound card will reach a better audio performance.
Typcal parameter
Analog output
Dynamic range (D/A):113Db
SNR (D/A):113dB
THD(D/A):0.001%
Frequency response (20Hz~20KHz):+-0.1dB
Output level:3V rms
Output impedance:10KΩ
Earphone RMS:100mW/RL=100Ω;200mW/RL=32Ω
Digital output
Dynamic range:140dB
SNR(A weighting):140dB
THD:0.0001%
Frequency response (20Hz~20KHz):+-0dB
Interface
Computer Interface :PCI/32Bit
A pair of RCA line output interface (stereo)
One 3.5mm earphone output interface
One square-mouth optical fiber output interface
One 2Pin S/PDIF output
One 10Pin S/PDIF digital expand interface
Major characteristic
24Bit/192KHz analog output
Support ASIO
Asynchronous buffer support exact digital audio timing sequence,lowest digital jitter
Output sample rate manual settings
Line / earphone output can switching over in the control panel
Drivers support Windows XP/2003/VISTA/7 system 32&64Bit
Product Accessory
Drivers CD
Warranty card
Quick installation guide
