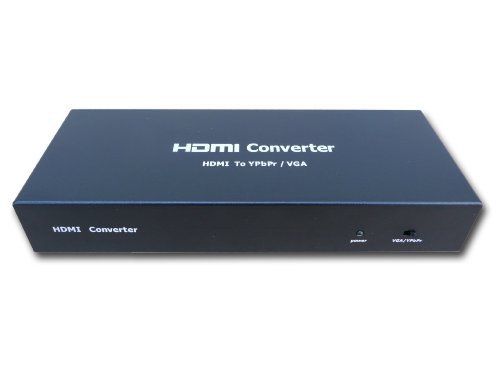

HDMI to Component / YPbPr or VGA Video Audio Converter

Unit Type: piece Package Weight: 0.5kg Package Size: 10cm x 10cm x 10cm

Tested 100% with all common HDMI sources such as Multichoice HDPVR, Apple TV Player, Mvix (HDMI Version), Sony Playstation 3, Microsoft Xbox 360, DVD players and Blu-ray Players on the SA market.

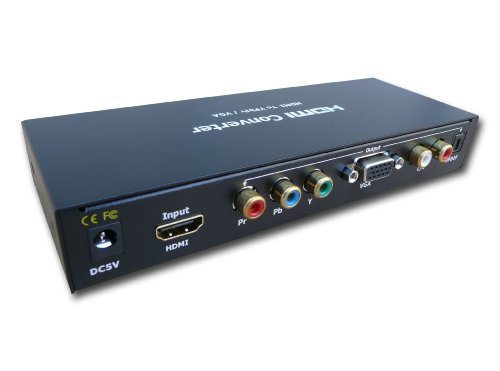

This product is similar to the HDFURY2. It will convert video & audio from a HDMI source to Component (3-RCA / YPbPr) or VGA / HD15 / D-Sub (15 pins, 3 rows of 5 pins each) with separate Toslink Digital Audio or Stereo RCA output. Please enlarge the picture on the right to see the different outputs.

FEATURES

 DESCRIPTION
The HDCRGB0102 Converter use a single HDMI source, accessing to single VGa+SPDIF sink or
single YPbP+SPDIF sink, The Converter allows one HDMI device to be converted easily
To one VGA+SPIDF or one YPbP+SPIDF monitor or projector.
Our devices offers solutions for noise, space and security concerms, data center control,
Information distribution, conference room presentation, school and corporate training environmrnts.

CONNECTING AND OPERATING

1. Connect one cable from HDMI1.2 sink into the Converter input.
2. Connect VGA+SPDIF or YPbPr+SPDIF from monitor or projector into Conventer outputs.
3. Connect 5Vpower supply to the HDCRGB0102 Converter.

SPECIFICATIONS                                                                           HDCRGB0102
HDMI resolution…………………………………………………………………. HDMI 1.2a
Input Video signal…………………………………………………………… 0.5~1.5Volts p-p
Input DDC signal……………………………………………………………. 5Volts p-p(TTL)
VGA or YPbPr output………………………………… Support up to UXGA and 1080(60Hz)
Audio output…………………………………………………………... R/L Analog and optical
Max transmission bandwidth………………………………………………………… 5.1Gbps
Max working current…………………………………………………………………….60mA
Power adapter format………………..Input:AC (50HZ,60HZ) 100V-240V, Output:DC5V/1A
Operating Temperature range…………………………………5 to 90%RH (No Condensation)
Dimension(L x W x H) ……………………………………………………… 174x70x20(mm)
Weight ………………………………………………………………………………… 750g
