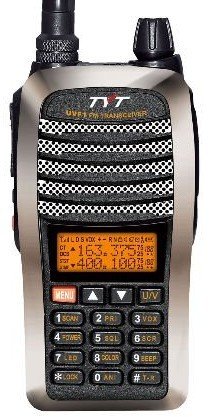

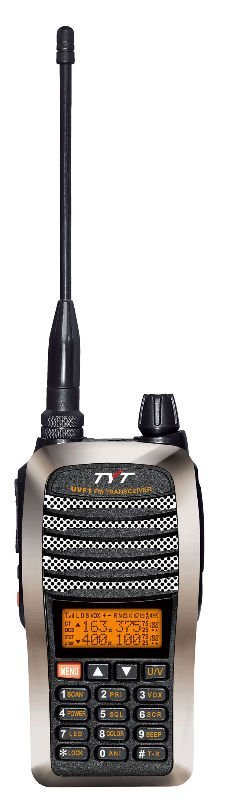

Free Shipping (DHL) TYT Two Way Radio TH-UVF1 Dualband UHF/VHF Hot for Wholesales/Retail

Place of Origin: Fujian China (Mainland) Talk Range: 5-20km Type: Handheld Brand Name: TYT Storage Channel: 128 Dimensions: 115x55x31mm Frequency Range: 400-470MHz & 136-174MHz Model Number: TH-UVF1 Color: Black Housing: PC+ABS Battery: Li-ion 1400mAh Weight: 1kg Case: PC+ABS
Unit Type: piece Package Weight: 1.0kg Package Size: 108cm x 58cm x 38cm



Technical parameters



Item number	TH-UVF1
General
Frequency Range	70-108MHz     (FM Receive only)     136-174MHz   (RX/TX)     400-470MHz   (RX/TX)     350-390MHz   (RX)     470-520MHz   (RX)     245MHz           (RX/TX)(optional)     350-390MHz   (RX/TX)(optional)     470-520MHz   (RX/TX)(optional)
Channel No.	128
Frequency Stability	5PPM
Antenna	High gain antenna
Antenna Impedance	50Ω
Operating Voltage	DC 7.2V(Rechargeable Li-ion battery)
Mode of operation	Simple or semi-duplex
Dimensions(W×H×D)	115x55x31mm
Transmitter
Output power	≥4W(H)   ≥0.5W(L)
Modulation Mode	16kΦF3E/ 11kΦF3E
Maximum deviation	<5kHz/<2.5KHZ
Spurious Radiation	<7μW
Adjacent Ch. power	≥65dB/≥60db
Pre-emphasis characteristics	6db
Current	≤1.6A(5W)
CTCSS/DCS deviation	0.5kHZ+/-.01kHZ  03kHZ+/-0.1kHZ
Intermediation sensitivity	8-12mv
Intermediation distortion	<10%
Receiver
RF Sensitivity	-122dbm(12db SINAD)
Audio power	>0.5W
Audio Distortion	≤10%
Intermediation	≥60dB ≥55db
Selectivity	≥65dB ≥60db
Spurious Rejection	≥65db
Blocking	≥85

























Payment Method







Shipment Policy







• This item will be shipped from China.
• Upon receiving your payment, item(s) will be shipped within 24 working hours. (when item in stock)
• We ship the item(s) by DHL,UPS,TNT,Fedex depend on different countries, HK post, China Post, EMS is our last choice due to slow arrival. DHL, UPS is our priority due to fast delivery. Normally takes only 3-5 days.
• If package return from the courier, buyer need to pay for the shipping cost again for resending.
• If buyer wants refund for the return package, shipping cost will be deducted.
• To avoid delay caused by delivery failure, please make sure your detailed address and phone numbers registered on aliexpress systerm are both correct.
• If you want the item to be shipped to an address different from aliexpress account, please inform us by email before payment.
• Since items cannot be delivered to a PO BOX, if your address on aliexpress is a PO BOX, please email us the delivery address before payment.
• We will declare low price on the shipping invoice(usually low than $10/pcs) to reduce import tax for you.
• Tracking number will be sent to your email after dispatching.



     * Import taxes may be charged by some countries' Customs, such as import
       duty, value added tax, customs clearance fees etc. We have no control
       over what the tax authorities would charge and the buyers are
       responsible for paying the taxes. If you have any questions about
       import tax, please contact the tax authorities for more detail before
       bidding.

---

Exchange, Refund and Return Guidelines



• We offer a 7-day exchange and refund policy for defective items and unsatisfactory purchase.
• Replacement item(s) or reimbursement(s) will be settled within 7 days from the day the customers received the original item(s).
• For refund cases, 10% of the purchase price will be deducted in the reimbursement as our administration charges and aliexpress charges.
• Return shipping costs are refundable only for successful exchange cases, i.e. for refund or non-valid exchange cases, customers should be responsible for the return shipping costs.

The return guidelines are as follows:-

• The item(s) must be returned in new condition and with all original manufacturer's packaging, including cartons, boxes, instruction manuals, blank warranty cards.
• All return item(s) must be boxed and packed securely for shipping. We are not responsible and do not accept any damages during the return delivery.
• We must to check your return shipping invoice before your return.

Tax Policy



• Customers are not responsible for any export duties.
• Unless special request is made, we mark all items as electronic or accessories with Low price or below  10usd value  on the customs papers. In this case, neither invoice nor receipt will be included in the package.
• We always do our best to avoid delays during clearance and legally minimize or eliminate your import duties and taxes expenses.
• In any cases, we will not be responsible for any import duties and taxes (e.g. GST, V.A.T.).

Warranty Policy:





l         We offer 1 year warranty for radio body, and half year for battery, charger.

l         Antenna, belt clip was offered a 3 months warranty.

l         Buyer can return the defective unit by courier at their own cost and will return together with your next   shipment.
