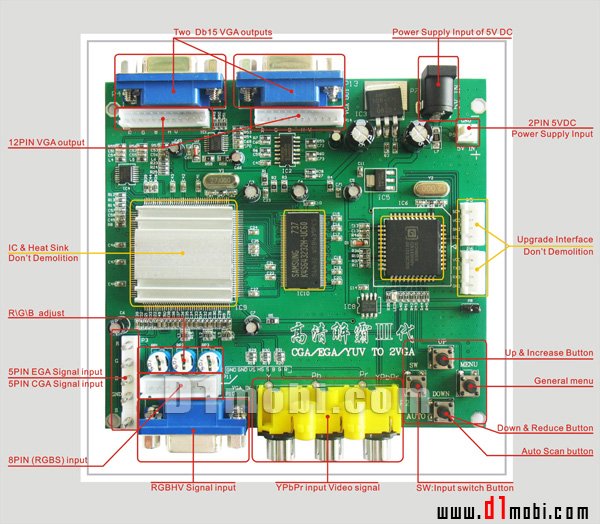

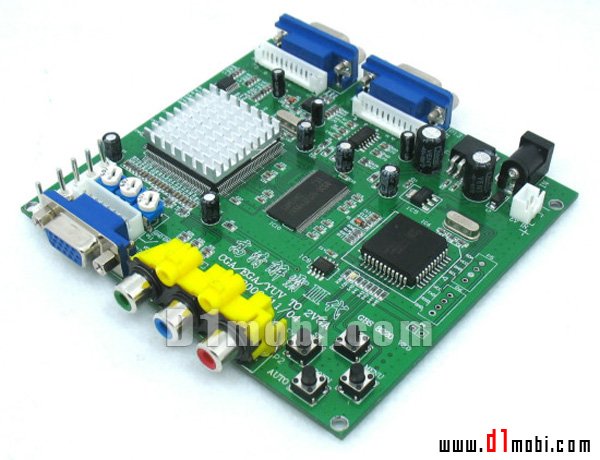

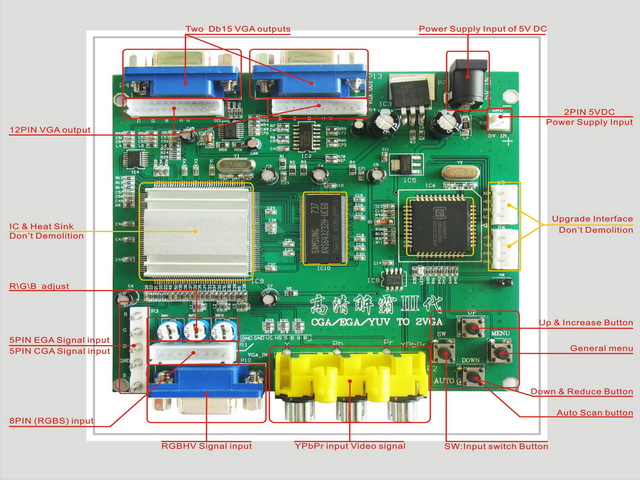

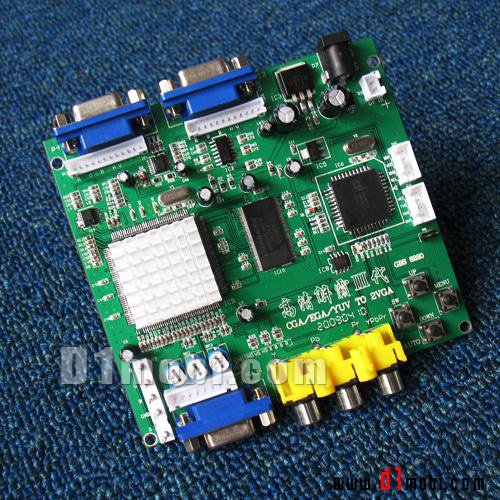

DC5V 2A +/- 0.5v High Definition Converter

Place of Origin: Guangdong China (Mainland) Model Number: 8220 RGBS: to 2VGA RGBHV: to 2VGA CGA: to 2VGA EGA: to 2VGA YPBPR: to 2VGA
Unit Type: piece Package Weight: 0.5kg Package Size: 20cm x 13cm x 10cm

Power
DC5V 2A +/- 0.5v

CGA/EGA
14.5-16.5K
23.5-25.5K
30.5-32.5K
Auto scan

RGBHV
30.5-32.5K
Auto scan

VGA
30.5-32.5K
Auto scan

Ypbpr
480p, 576p, 720p, 1080p
Auto scan

Input signal
Ycbcr
480I, 576I, 720I, 1080I
Auto scan

Output signal
VGA
640*480, 800*600,1024*768, 1360*768

User control
Input Switch, Image Zoom, Image Position,
Output Resolution, RGB gain adjust.
Menu Key
RGB VR
Dimensions
115*105*20mm

MENU CONTROL
- "MENU" open OSD menu, and enter.
- "UP" up and increase.
- "DOWN/AUTO" down and reduce.
Press this key auto scan CGA/EGA signal
Press this key over 5 second and release reset system
(this operation is invalid when you open OSD menu)
SW" switch input signal Ypbpr/RGBS/RGBHV.
(this operation is invalid when you open OSD menu)
Clamp sp" & "Clamp" please don't adjust this button, excepting the monitor have black item.
More functions control please look to OSD to operation.

FAQ

No signal on you monitor
please check input and output cable, make sure all cable it's connected. And make sure power it's on. Display on you monitor it's "No signal" please press "SW" to switch input signal.
Input not supports -when you monitor display "input not supports" maybe you need change to low resolution.
Please press "DOWN/AUTO" over 5 second and release. System reset to 800*600 output.
Image not full on you screen
-please enter menu adjust image position and zoom.
Image shake or freeze
-please press "DOWN/AUTO", system auto scan input signal and restore image.
Have black item on screen, or all screen it's too black.
-please adjust "Clamp sp" and "Clamp st", please keep "Clamp st" less than "Clamp sp".
Image color not right
-please adjust RGB VR.
