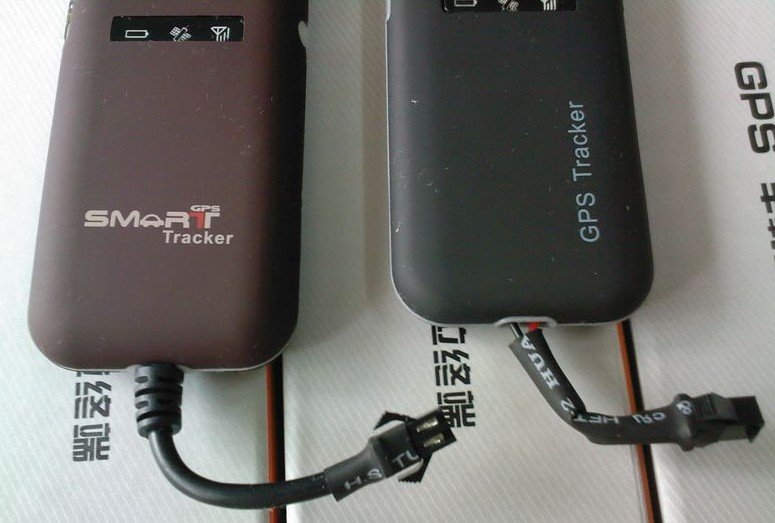

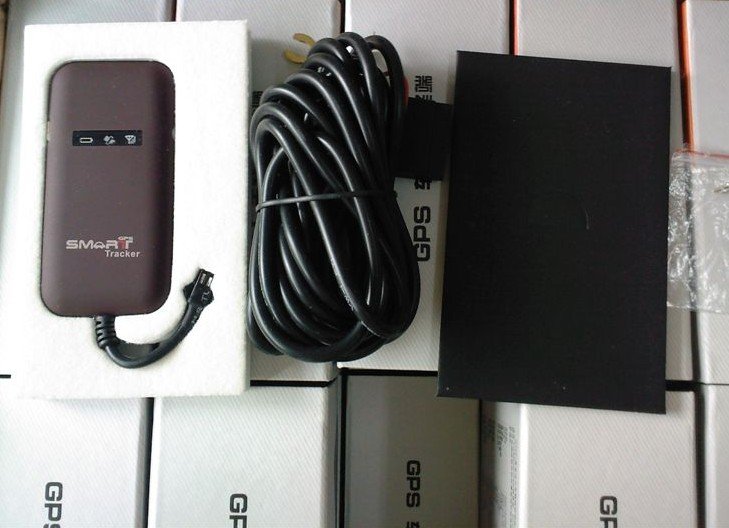

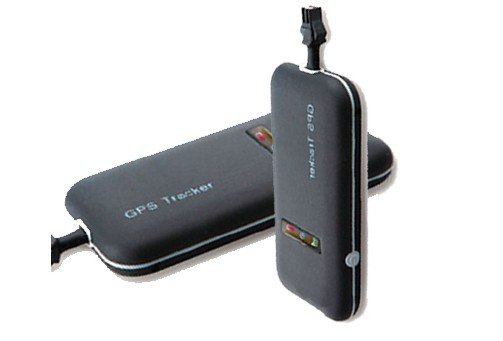

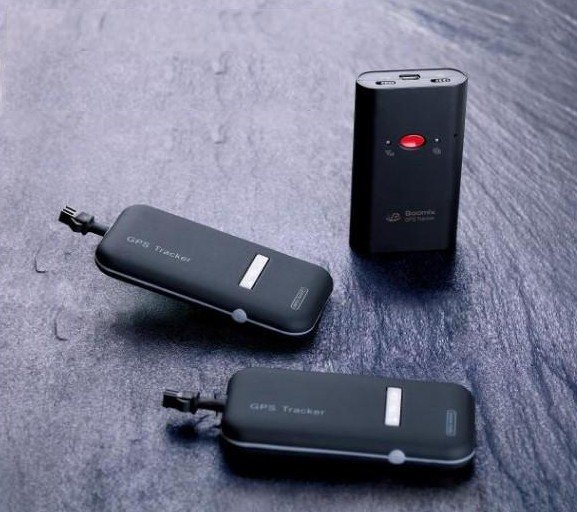

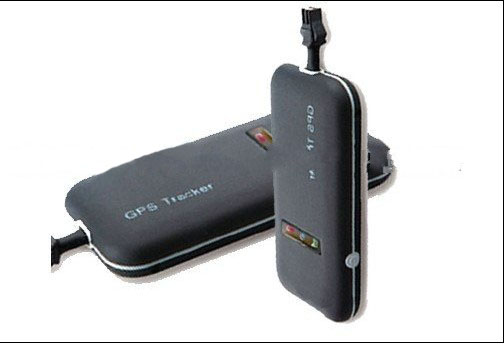

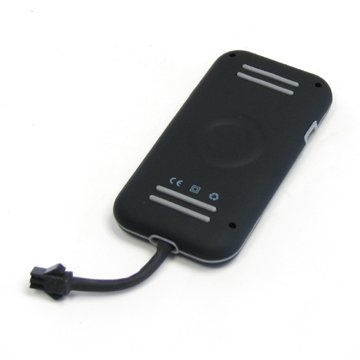

Cheap GPS Chipset with High Sensitivity Built-in GSM Module GPS Vehicle Tracker

Place of Origin: Guangdong China (Mainland) Brand Name: OEM Model Name: SK101 Car Make: all Color Name: Black Type: Gps Tracker Function: tracking
Unit Type: piece Package Weight: 1.0kg Package Size: 10cm x 10cm x 10cm

Products Introduction

To operate with GPS/GSM/GPRS wireless network

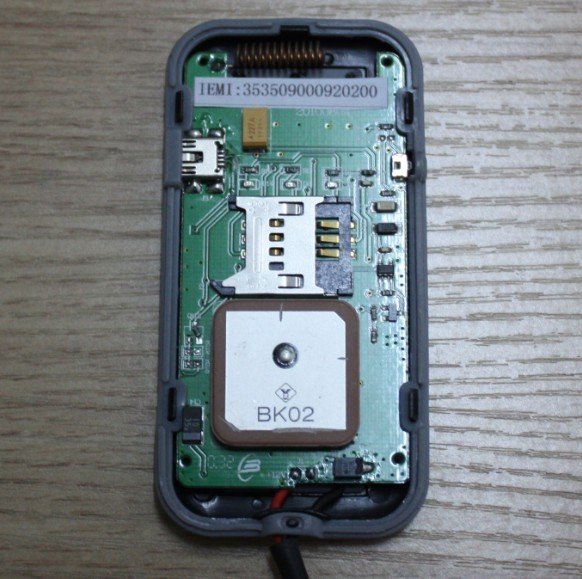

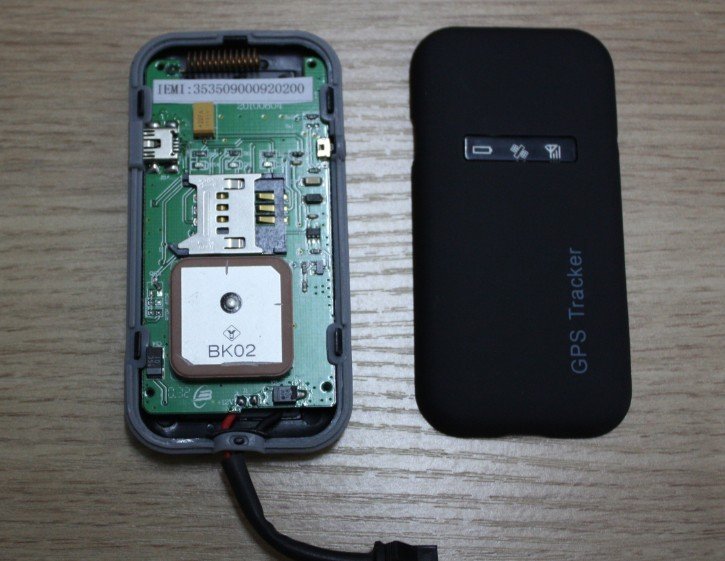

GPS chipset with high sensitivity
Intelligent activation of GPS positioning
To start working automatically after electrifying
Built-in monitoring CPU, eliminating breakdown automatically
Built-in ON/OFF power, wide voltage input range
Commands and location information received by SMS
Easy to install, open or hidden installment alternatives

Two power input approaches: car-specific joint or car battery

Features

GSM----900/1800MHz
GPRS--Class2,TCP/IP built-in GSM Module
GPS Module--SiRF Star III/LP
GPS Channels--20
Tracking sensitivity- 159dBm
Acquisition sensitivity- 144dBm
Locating time cost--Hot start--2sec(Open Sky)
                              Warm start--15 sec
                              Cold start--38 sec(Open Sky)

Antenna--Built-in GSM,GPS antenna with low noise and high gain
LED indicator--Three LED indicator:GPS-blue,GSM-green,Power-red
Power input--Car power supply--7 ~ 30vDC

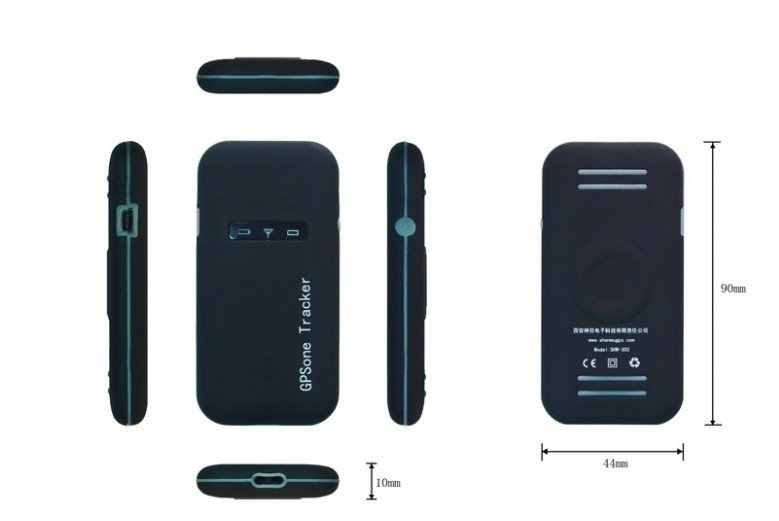

Dimensions--90.0( L) X 45.0 (W) X 12.0(H) mm
Weight--45g
Application environment--Operating temperature---25 °C to +80 °C
                                        Storage temperature---30 °C to +85 °C
                                         Operating humidity--45% to 80%RH
                                         Storage humidity--30% to 90%RH
