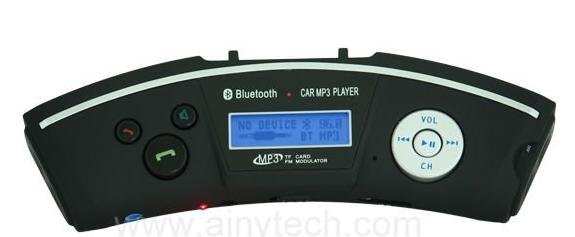

Bluetooth MP3 Support TF Card Built-in Transmitter Bluetooth Car Kit

Place of Origin: China (Mainland) Combination: MP3 / MP4 Players Brand Name: headphones Certification: CE Model Number: headphones Item Type: Bluetooth Car Kit color: black
Unit Type: piece Package Weight: 0.6kg Package Size: 30cm x 20cm x 10cm

1. Steering wheel, Bluetooth MP3, and Bluetooth hands-free phone call can be connected after

2. Support TF card, users can insert TF card, the card automatically play MP3 format music

3. Installed inside the steering wheel to maintain a more clear sound, eliminating the need for steering wheel remote control

  To make driving safer

4. Built-in transmitter and support full frequency emission (87.5-108.0MHz), when playing MP3 songs

  The document is stored in the TF card, MP3 radio transmitter, to listen to audio through the radio, you can call

  Launched into car audio.

5. Using 2.4G Bluetooth version of the third generation of CSR, launched from the 8 m beyond

6. Can display Caller ID, and a 'drop' gave the voice prompts

7. Built-in microphone and rechargeable battery

8. Preparation wireless headphones (frequency 88.1MHz) implementation calls, close to listen and hang up feature

9. High-definition LCD screen that can display song number, frequency, and phone numbers

10. Keyboard features: frequency adjustment, pause, play, adjust the volume, the song, the next track, then

   The phone, hang up and listen closely

11. Autoplay TF card, MP3 music. Power may remember song number, frequency and volume

12. Support multi-language (optional)

13. Vehicle supply voltage range: DC 12V-24V

14. Built-in audio output interface, can connect headphones and other monitoring equipment

15. Using digital firing technology to avoid interference from outside

Charge Description:

1. You can charge cars.

2. You can remove the host computer and other USB charging port (USB port voltage of 5V).

3. This machine charging, the battery symbol flashing, not after full flashing red light headset, headset full of

  After the red light off.

Tips
1, the product is installed in the steering wheel to use, without any modification to the vehicle, installation is simple, and similar products, compared to drivers with a more comfortable and convenient mode of operation and the environment.
2, The product mainly applies to small and medium sized cars.
3, it is recommended to install over the steering wheel in order not to block vehicle instrument panel is appropriate.
4, the product installed in the steering wheel, car driving, do not car rechargeyour batteries.

Function and Use

1. Key Function

1. "CH" key to select the function of frequency

2. "Play Pause" button: Play Pause

3. "On a" key: on a frequency by reducing the volume

4. "Under a" key: increase frequency, under a volume increase

5. "VOL" button: volume function keys to answer

6. "Answer" button: when answering incoming phone calls, redial the last dialed number

7. "Speaker" key: speaker and emission conversion machine
8. "Hang up" button: hang up call is completed



2. Instructions

Bluetooth car audio and car

1. The Car Bluetooth MP3 installed inside the steering wheel, hit the power switch ON state, Bluetooth MP3 is switched on, plug TF card automatically play music, Bluetooth MP3 speaker issue is the TF card music

2. Turn on your car stereo, car audio transfer to the state in FM radio, the frequency with Bluetooth MP3 transferred to the same frequency (eg: car audio frequencies to the corresponding Bluetooth MP3 87.5MHZ frequency is 87.5MHz) then click the "speaker" button car radio can receive Bluetooth MP3 music out of the Play



3. Bluetooth MP3 online and use

1. Cell phone with Bluetooth function must be (preferably mobile phone Bluetooth is version 2.0)

2. Bluetooth settings inside the voice transmission path is set to hands-free device.



4. Bluetooth connection and use of (car kit)

1. Long press "hang up" key to enter the mobile phone with Bluetooth on the code status, Bluetooth status lights into the flash.

2. The phone's Bluetooth function is turned on for a Bluetooth device search and wait for a few seconds, the phone appears on the search screen to the Bluetooth device name "CCC"

3. Handset implementation of online functionality, there will be a password dialog, the dialog enter "0000" and then phone confirmation button to confirm.

4. Cell phone screen will be "hands-free devices have on-line service" message, then that online mobile phone and Bluetooth have in place, you can enter the dial and listen to the phone to receive calls:

5. When a call comes in, Bluetooth will appear on the screen each other's phone number, then enter the suspended state of music, according to the host you answer "button, enter the telephone answering state (this time you do not then let's use cell phones, directly the board to speak on it).

6. Enjoy privacy calls: When you next to someone, is not convenient for others to hear the voice on the car stereo, now can remove the wireless headset to listen to Secretary, telephone cut to the wireless headphones on.

7. Dial telephone: When playing music, then you can dial directly from mobile phones, takes a few seconds, car stereos can be heard each other's cell phone ringing until the phone connected to the other side, you do not take phone speak directly into the device, the telephone communication; when you need to redial the last outgoing phone number, simply press the answer button.

8. Hang Operation: When you want to call the end of the implementation of this button hook function, the call ends.



5.'s Copy and delete

1. The TF card into the reader and then into the computer interface.

2. To your favorite music files copied from your computer to TF card. If you want to delete the songs will not like do not like the song can be selected by right point to delete.

3. Copy songs finished, please exit the normal procedures can not be directly allocated to the computer to avoid damage to TF card



6. Deal with general issues

1. Play songs heard a noise first check on Bluetooth MP3 car audio FM frequency and their frequency is one to, if there has been noise can fine-tune the car stereo's FM frequency, up or down 0.1MHZ (based on the actual sound quality effect the transfer)

2. If a song is playing when the song itself sound a noise that the poor need the computer to delete these songs.

3. When the Bluetooth does not work, that the built-in lithium has been depleted, plug in the delivery of the cigarette lighter power adapter for charging

4. Such as the distribution of power converters indicator does not light, check the fuse inside the converter has blown, so please replace the same size fuse can be.

5. In case you can not resolve the problem, please contact the dealer for assistance; Do not open the machine itself, or else lose the right of your machine warranty
