25W*2 Output Power 6.35mm Output Interface Amplifier Built-In High-Fidelity Headphone

Place of Origin: Guangdong China (Mainland) Type: Professional Amplifier Channels: 2 (2.0) Model Number: TP41 Output Power:: 25W*2
Unit Type: piece Package Weight: 3.5kg Package Size: 12cm x 20cm x 30cm

TP41 features:

1, the amplifier part of the company by the United States TRIPATH DPP technology to achieve the lowest cost leap in sound quality digital amplifier, the whole sound quality comparable to three thousand yuan on the level of conventional power amplifier;

2, built-in high-fidelity headphone amplifier to facilitate the dead of night without disturbing others rest, 6.35mm headphone amplifier output interface is the interface, wide;

3, between the headphone amplifier and power amplifier to manually switch the headset to avoid frequent assembly and disassembly;

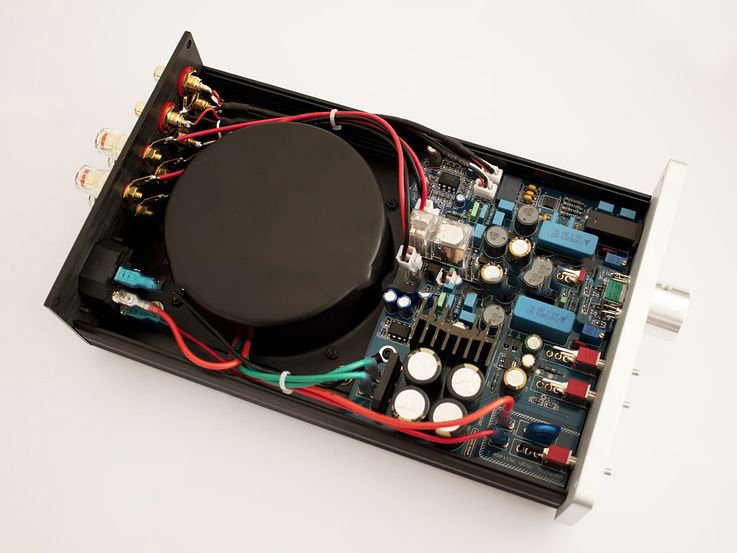

4, the internal linear power supply with toroidal transformer + unique epoxy potting + transformer shield shielding techniques;

5, supports 2-way RCA analog signal input, the original input selection system allows users the freedom to select any or all the way to judge by the amplifier and select;

6, aluminum chassis using CNC machining centers precision machining, CNC machined with solid knobs, giving you superior visual impact and operation of hand;

7, the new test is based on the output of speaker protection system, ensure that your precious speakers foolproof.

Parameters

Amplifier output power: 25W @ 4Ω, 10% THD + N; about 14W @ 8Ω, 10% THD + N

Amplifier Distortion: 0.05% THD + N @ 13W/4Ω

Efficiency power amplifier chip: 81% @ 25W, 4Ω; 88% @ 13.5W, 8Ω

Amp output power: 60mW @ 16Ω, 1% THD + N; 120W @ 32Ω, 1% THD + N

Amp Distortion: 0.01% THD + N @ 100mW/32Ω

Amplifier section contains the switch mute circuit, overheat protection circuit

Speaker protection circuit amplifier section contains

Standard voltage: 220V or 110V optional

Dimensions (excluding protrusions): Length 145mm * 60mm * Deep 240mm High

Net weight (without any accessories):  2.7 kg

Gross Weight: about 3 kg
