2.0 Inch TFT Colorful Screen 150 Degrees Wide Angle High Speed Car Video Recorder

Item Type: Car DVR Place of Origin: China (Mainland) Model Name: H-190 Color Name: Black
Unit Type: piece Package Weight: 3.0kg Package Size: 15cm x 15cm x 15cm

feature:
1.Image sensor: 1/4 color CMOS WXGA HD Sensor
2.Recording resolution:
 1280 x 720 Pixels , 30fps
  720 x 480 Pixels , 30fps
3.2.0 inch TFT colorful screen
4.Compression file: H.264
5.Lens: 150 degree
      revolve 270 degree
6.Low illumination:0.5Lux
7.Support SD/MMC cards up to 64GB
8.Support real Time & Date display on video
9.Recording automatically after power is on
10.High speed recording and quick light respond
11.Repeat storage by section
12.Cycled recording
13.Power input: DC5V
14.Power:
  rechargeablce li-battery
  car Charger
15.Interface: HDMI & USB2.0
16.Microphone: Include

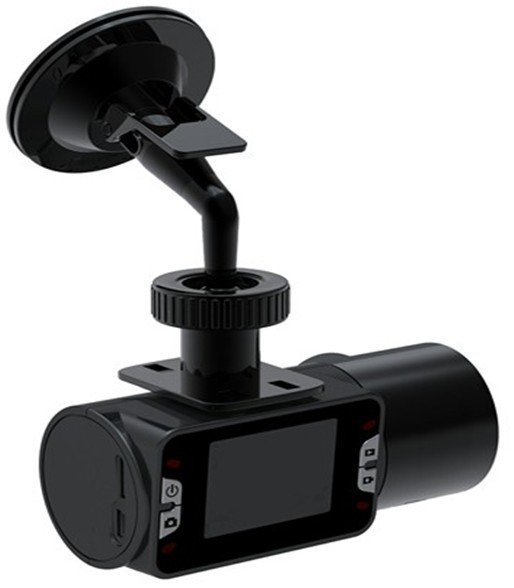

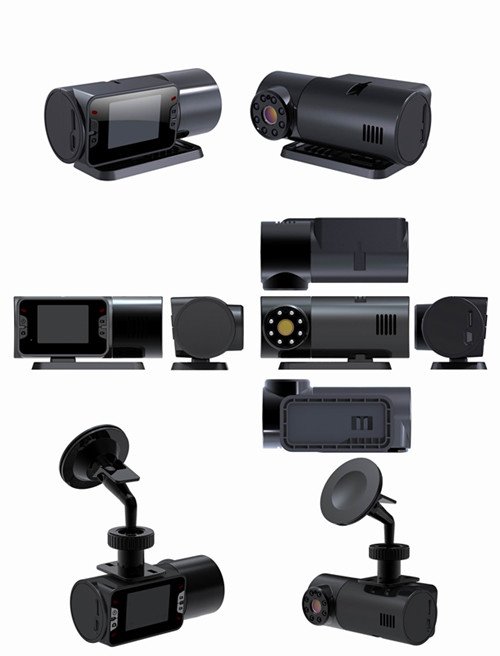

1: Structural Representation

2: Product Introduction

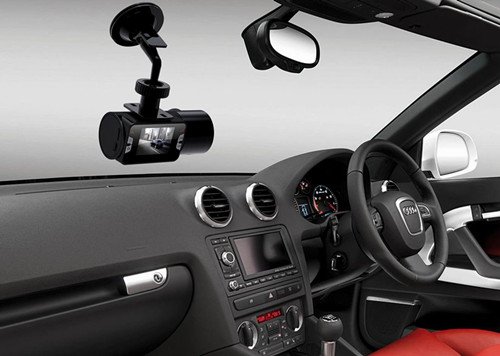

This high-tech new product, featuring many functions such as high resolution video, camera, night vision, record, network chat, external TF card memory, being available for your excellent and happy daily life, tourism and outdoor activities, is mainly used for vehicle video-recording and effective evidence collecting for safety misadventures

3: Structural Function Introduction

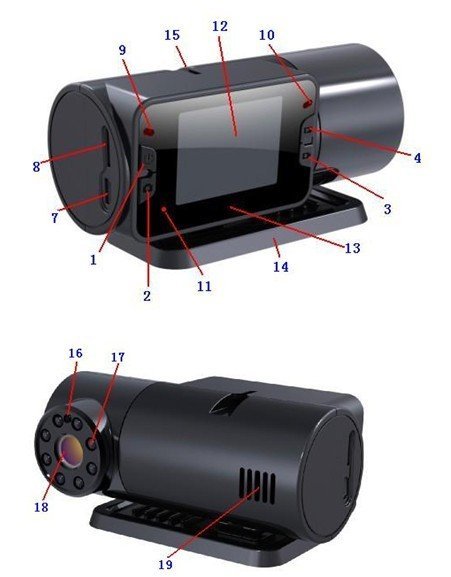

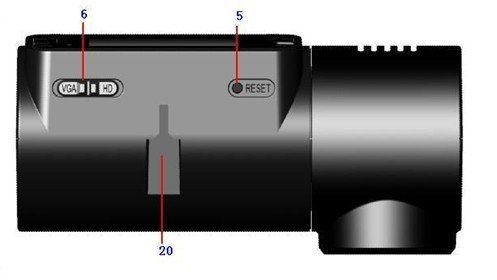

1-Switching   2-Camera   3-Video   4-Play   5-RESET   6-VGA-HD Change-Over Switch   7-USB Interface   8-TF Card Slot   9- Operation Indicator    10- Charge Indicator    11- Microphone   12- Display   13- Glass  14-Support  15-Upper support slot   16- Photosensing device  17-Infrared Light for Night Vision   18- Lens   19- Speaker   20-Lower Support Slot

4: Operating Instruction

1-Insert the TF card into the TF card slot on the left, start it by pressing the Switching. The operation indicator will be ON when the product is started up and a “Welcome” will appear. Wait for 3s until the product is ready. The TF card will be read when the product is under a standby state. The higher the capacity of the card is, the longer the reading time needs (3-5s);

2-Press the Video to start the video function under the standby state, every video clip lasts 2min. An unlimited loop recording is allowed. Repress the Video to perform an automatic storage of clips and go back to the standby state; 2 video types (2min) are provided and the pixels of which are 1280X720 and 720X480 respectively;

3- Pictures can be taken by pressing the Camera (1 picture / press) under the standby state;

4- VGA-HD Change-Over Switch-For video: VGA=720X480, HD=1280X720; For USB mode: the product, when stopped, can be connected to the USB of your computer. VGA= USB flash disk memory, HD=PC CAM (network camera);

5-The RESET can be used to restart the product if a crash is caused by an abnormal operation or running environment.

6- Press the Play for 3s to start the Play Mode, the files can be played and paused by short pressing the Play under the Play Mode; The Camera and Video mean Last and Next respectively. Quit the Play Mode by pressing the Play for 3s to return to the standby state;

7- A low battery signal will appear on the screen when the product is under low battery, charge the product as soon as possible;

8-The Video function will be started if the red light is ON under the charging mode, press Video to pause and keep the charging mode. If a prolonged video record is needed, no any other operation is allowed under the charging mode.

5: Relative parameters

Package contents:

car camera,USB cable,car charger,car mount,manual
